R020276

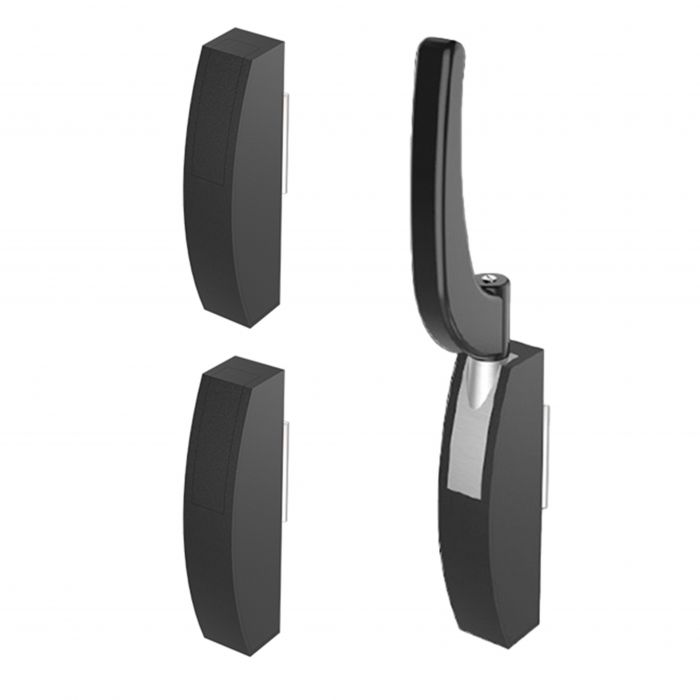

3 Point lever action fastener in composite & steel material. Strong smooth action. Low temperature and corrosion resistant.

Fastener mounts to the edge of the door, Strike is surface mounted. Kit includes the sturdy 400mm overall length Fastener & Strike plus 2 fastening housings & strikes for upper & lower door positions.

Refer to stock code R020269 for the Single point Fastener model 3025.

• For overlapping cold room doors.
• 3 Fastening points.
• Max door weight: 80kg.
• Cold room temperature: -30 / +40 degrees C.
• Door height: 500mm - 3000mm.
• Door width: 500mm - 1500mm.
• Door thickness: 60mm - 250mm.
• Door offset: 75mm - 250mm.
• Interchangeable left & right hand opening.
• No Lock.
• Adjustable lever handle orientation. Brass lever.
• Automatic catching device.

Use Intertecnica R018865 safety Inside Release Handle & Strike with this model.
