R020269

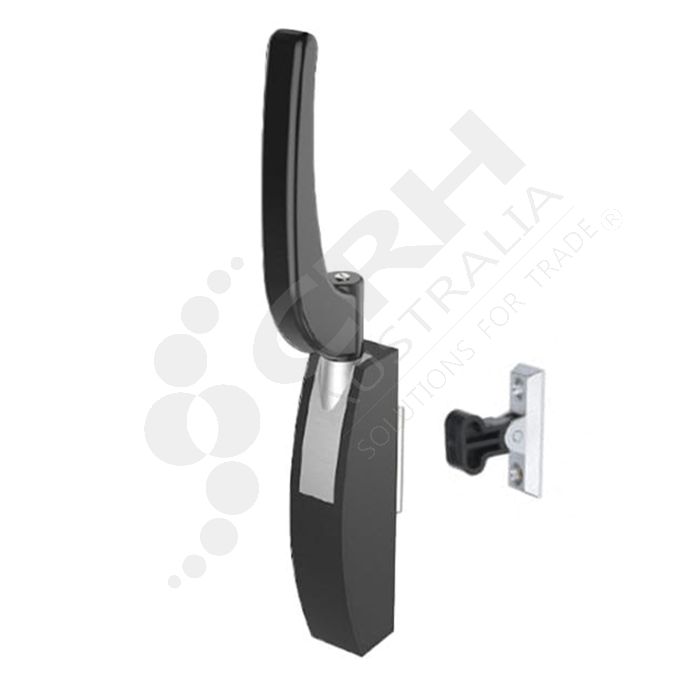

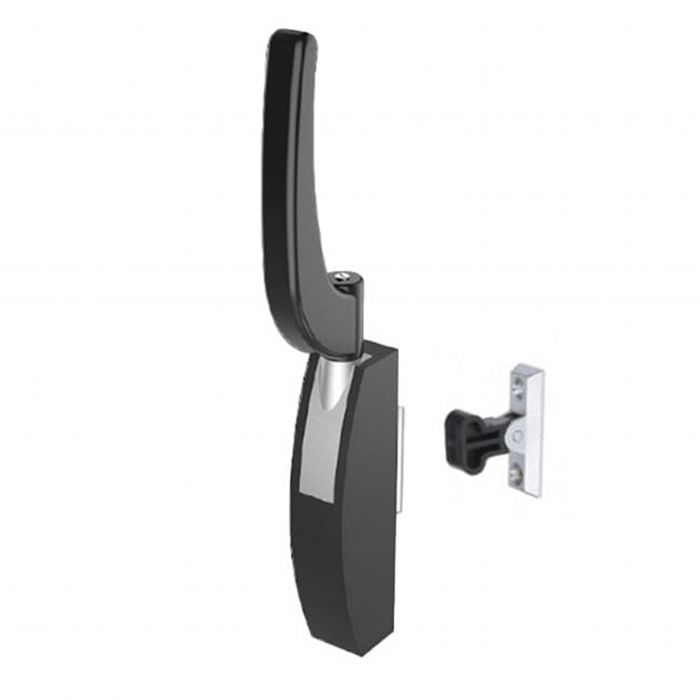

Single point Lever action fastener in composite & steel material. Strong smooth action. Low temperature and corrosion resistant.

Fastener mounts to the edge of the door, Strike is surface mounted. Sturdy 400mm overall length.

Refer to stock code R020276 for 3 point fastening version.

• For overlapping cold room doors.
• Max door weight: 80kg.
• Cold room temperature: -30 / +40 degrees C.
• Door height: 500mm - 3000mm
• Door width: 500mm - 1500mm
• Door thickness: 60mm - 250mm
• Door offset: 75mm - 250mm
• Interchangeable left & right hand opening.
• No Lock.
• Adjustable lever handle orientation.
• Brass lever.
• Automatic catching device.

Use Intertecnica R018865 safety Inside Release Handle & Strike with this model.
