CRH-1000-150LV Large Pressure Relief Valve - Low Voltage
CRH-1000-150LV
In stock
Stock Code
CRH-1000-150LV

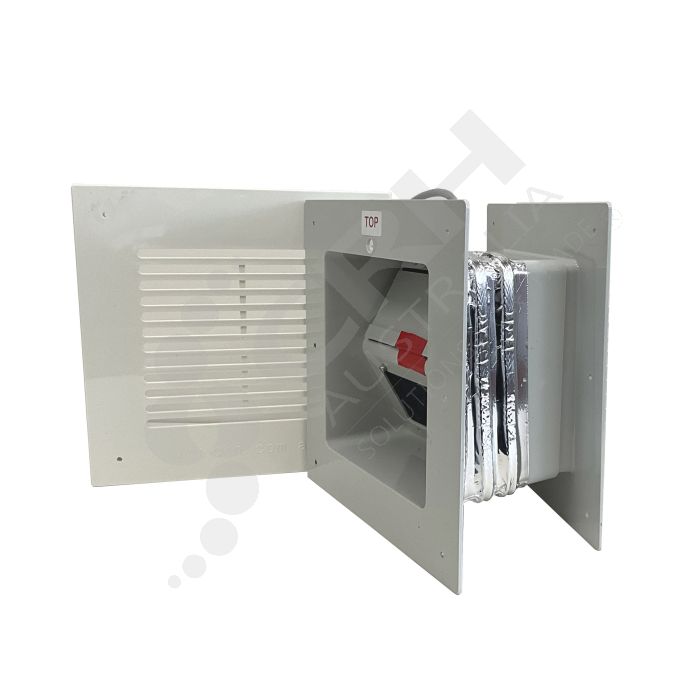

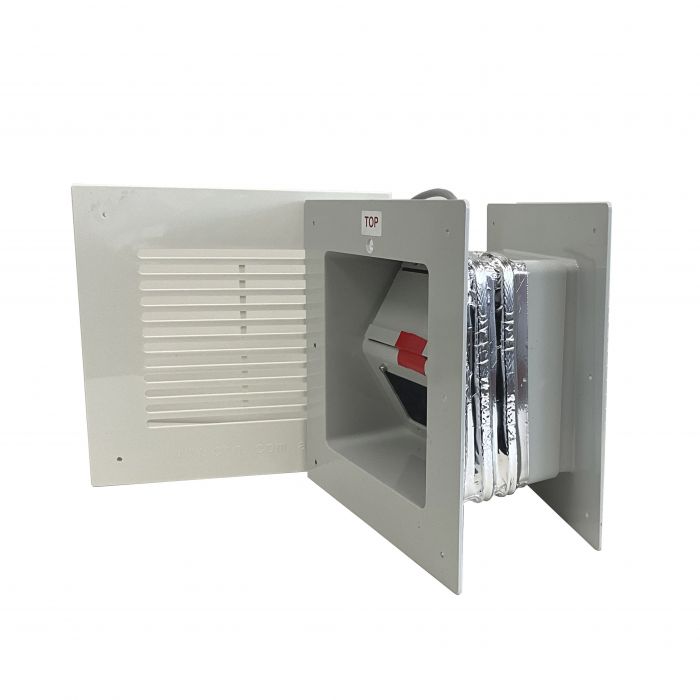

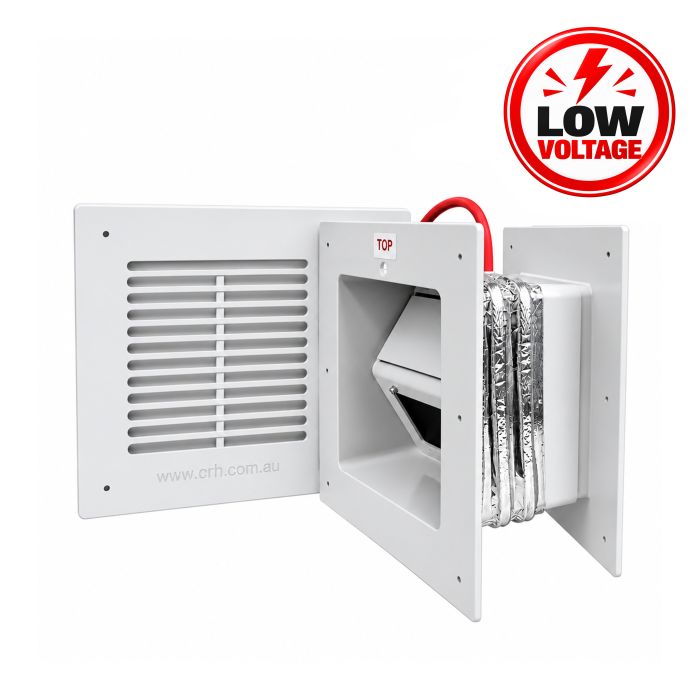

The CRH-1000-150LV is a heated, mechanically operated valve with 2 sealing flaps allowing airflow in either direction. The heating element is a 61 watt constant output low voltage heater cable, 24 volt AC with 0.29 amp draw. Cable terminations to a 240/24 volt AC step down transformer of 180 VA will allow up to 3 of these valves to be connected to 1 transformer. Supplied with 2 Vermin Screens and fixing screws.
- Material: Polycarbonate
- Flange Size: 300mm x 300mm
- Cutout Size: 220mm x 220mm
- Panel Thickness: 150mm
Installation & Technical Downloads
$488.30 $537.13
Please Note:
Heaters for Pressure Relief Valves and or Door Frames must not be activated (switched on) before the room is brought down to operating temperature.
